How to Choose the Right Wire Cable Tray for Your Project?

Choosing the right wire cable tray is a practical engineering decision, not a simple product comparison. Cable weight, route length, support spacing, heat, corrosion, and future expansion all affect performance. A tray that looks oversized may still fail when cables collect at one bend.

The International Energy Agency’s Electricity 2024 report estimates that global data-center electricity consumption could exceed 1,000 TWh by 2026. This growth increases demand for organized, accessible, and thermally responsible cable routing. In the United States, Lawrence Berkeley National Laboratory’s 2024 data-center report estimates that data centers used about 176 TWh of electricity in 2023. These figures highlight why tray selection deserves early attention.

Start with the installation environment. Indoor commercial rooms may suit galvanized steel, while coastal or chemical areas may require stainless steel or a protective coating. Check the manufacturer’s load tables instead of relying on appearance. Confirm cable fill, allowable span, deflection, and available support hardware. Consider separation between power, control, and data cables. It matters.

Standards also guide reliable decisions. NEMA VE 1 addresses metallic cable tray systems, while IEC 61537 covers cable management systems and testing requirements. Local electrical rules remain essential, especially for bonding, grounding, fire-stopping, and accessibility. A project team should document these checks before purchasing.

There is no universal best tray. The cheapest option can become expensive after corrosion, overcrowding, or difficult maintenance appears. Even experienced teams can underestimate future cable growth. This guide explains how to compare materials, tray types, load ratings, installation conditions, and lifecycle value with greater confidence.

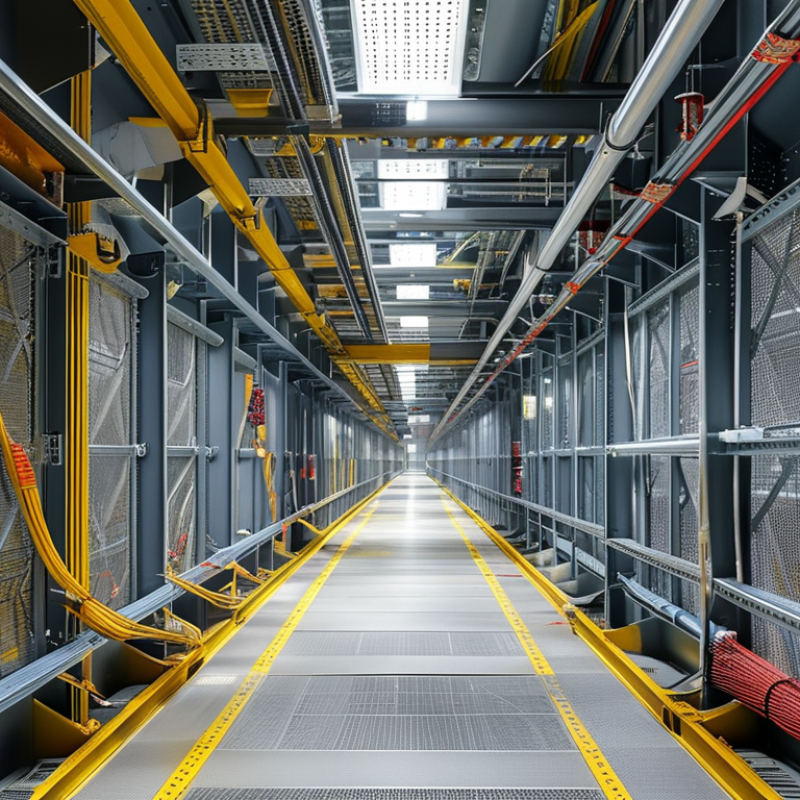

How to Choose the Right Wire Cable Tray for Your Project?
Table of Contents [Hide]
1 Define Cable Quantity and Fill Using NEC 392.22’s 50% Multiconductor Limit
2 Match Tray Load Capacity to NEMA VE 1 Classes from 50 to 150 lb/ft
3 Select Ladder, Perforated, or Solid-Bottom Trays by Cable and Environment
4 Compare Steel, Aluminum, and FRP Using IEC 61537 Performance Criteria
5 Verify Span, Deflection, Corrosion Protection, and Bonding Before Installation

Define Cable Quantity and Fill Using NEC 392.22’s 50% Multiconductor Limit

Choosing the right wire cable tray starts with an accurate cable inventory. Under NEC 392.22, multiconductor cables generally cannot occupy more than 50% of the tray’s usable interior area. This limit supports heat dissipation and leaves room for installation adjustments. Do not estimate cable quantity by counting conductors alone. A three-conductor cable still counts as one cable, using its complete outside diameter.

Measure each cable’s actual diameter from reliable manufacturer data. Then calculate its area with π × diameter² ÷ 4. Add the areas of all planned cables and compare the total with 50% of the tray’s internal cross-sectional area. For a rectangular tray, width multiplied by usable depth provides a practical starting point. Confirm the final method with the applicable NEC edition and the local electrical authority.

My first layout was too optimistic. I counted only the main power cables and forgot control wiring near the tray wall. That mistake reduced working space quickly. Leave capacity for future circuits, pulling movement, and larger replacement cables. Also check bend radius, support spacing, environmental exposure, and cable weight before selecting tray width and material. A tray that passes the fill calculation may still be difficult to install.

Measure twice. Field conditions can disagree. Consult a qualified electrical professional when cable dimensions, voltage levels, or tray configurations fall outside ordinary applications.

Match Tray Load Capacity to NEMA VE 1 Classes from 50 to 150 lb/ft

Choosing a wire cable tray starts with its real load, not its appearance. NEMA VE 1-2017 identifies common load classes of 50, 75, 100, 125, and 150 lb/ft. These ratings apply to specified support spans and installation conditions. They are not universal capacities for every project. Check the tested span before selecting a tray.

Calculate the combined weight of power cables, control cables, fittings, covers, and planned additions. A 50 lb/ft class may suit a lightly loaded control route. A 100 or 150 lb/ft class may be more suitable for dense power distribution. Leave practical allowance for future circuits. Do not guess.

NFPA 70, 2023, Article 392 also addresses cable-tray installation, conductor arrangement, and allowable fill. These requirements can change how much usable space remains after cable separation. A tray can meet its weight rating yet fail the project’s routing needs. That is an easy mistake.

Field reviews often reveal another problem: designers use catalog capacity without checking support spacing, seismic demands, corrosion exposure, or concentrated loads. I would recheck those assumptions against the installation drawings and the manufacturer’s tested data. NEMA VE 1 provides the reference framework; the project engineer must match it to actual conditions. The correct class is the lowest verified rating that safely handles present and foreseeable loads. Keep the calculation visible.

How to Choose the Right Wire Cable Tray for Your Project?

Match the tray load capacity to the applicable NEMA VE 1 load class. The chart compares the standard load ratings from 50 to 150 lb/ft and their metric equivalents.

Selection note: NEMA VE 1 load classes are expressed in pounds per foot. Actual tray capacity also depends on support span, tray type, material, installation conditions, and the applicable product design. Confirm the selected system against the manufacturer’s published load tables and project requirements.

Select Ladder, Perforated, or Solid-Bottom Trays by Cable and Environment

How to Choose the Right Wire Cable Tray for Your Project?

Selecting a cable tray starts with the cable type and the installation environment. Consider cable weight, heat, moisture, dust, chemical exposure, and maintenance access. A ladder tray suits heavy power cables and long runs. Its open rungs improve ventilation and make cable placement easier. This design also helps workers inspect cables without removing a cover.

Perforated trays offer balanced support and protection. Their punched openings improve airflow while supporting control, data, and medium-weight power cables. They work well in indoor equipment rooms and moderately dusty areas. Solid-bottom trays provide stronger protection against falling dust, dripping water, and small debris. They are useful for sensitive signal cables or clean routing near production equipment. However, ventilation is weaker. Heat buildup can become a real concern. I have seen projects choose solid bottoms for neatness, then struggle with cable temperature later.

Tips: Check the tray’s load rating, span, cable fill, and corrosion resistance before ordering. Use covers where falling objects or water may reach the cables. Keep power and communication cables separated when interference is possible. Leave spare capacity for future additions, but do not oversize blindly. Large trays can increase cost and complicate support spacing. Confirm local electrical requirements and the manufacturer’s installation data. One detail is easy to miss: inspect sharp edges after cutting. Smooth them before pulling cables through. That small step protects insulation and saves rework.

How to Choose the Right Wire Cable Tray for Your Project? - Select Ladder, Perforated, or Solid-Bottom Trays by Cable and Environment

Tray Type Best Cable Types Ventilation and Heat Dissipation Cable Protection Recommended Environments Typical Load Suitability Installation and Maintenance Primary Selection Reason
Ladder Cable Tray Large power cables, medium-voltage cables where permitted by the applicable standard, and heavy multi-cable installations. Excellent
Open rungs allow strong air circulation and help reduce heat accumulation around cables.		 Provides limited underside protection. Cables are more exposed to falling objects, dust, and accidental contact unless a suitable cover is installed. Power distribution rooms, utility areas, industrial plants, substations, and long horizontal or vertical cable runs. High potential
Often selected for heavy cable loads, but allowable load depends on span, material, support spacing, and manufacturer testing.		 Easy to inspect, route, and add cables. Rung spacing should be checked against the cable diameter and the required support method. Choose when high ventilation, strong support, and convenient cable access are more important than maximum environmental protection.
Perforated Cable Tray Control cables, instrumentation cables, communication cables, and light-to-medium power cables. Good
Perforations provide airflow and allow heat to escape, although generally less freely than an open ladder design.		 Offers more continuous support and better protection from small falling particles than ladder tray. It does not provide a sealed enclosure. Commercial buildings, manufacturing facilities, data and control areas, service corridors, and general indoor installations. Medium to high potential
Actual capacity must be verified using the selected tray width, depth, span, material, and support configuration.		 Provides a stable cable surface and convenient fastening points. Cable additions are relatively easy, and routine inspection remains accessible. Choose for a balanced combination of ventilation, cable support, protection, and installation flexibility.
Solid-Bottom Cable Tray Small control cables, data cables, sensitive low-voltage wiring, and installations requiring continuous cable support. Limited
Heat dissipation is lower because the cable rests on a continuous base; derating may be required for concentrated cable groups.		 Provides the best protection of the three options against falling dust, dripping contaminants, and cable sag through the tray base. A cover may still be required. Clean indoor areas, offices, hospitals, laboratories, ceiling spaces, and locations where small debris or liquid drips may occur. Application dependent
Capacity is governed by tray construction, support spacing, cable weight, and thermal requirements rather than tray type alone.		 Supports small or flexible cables continuously and helps keep cable routes orderly. Cable inspection is possible, but heat and moisture accumulation should be monitored. Choose when continuous support and improved protection from debris are more important than maximum ventilation.

Selection note: Confirm cable fill, cable weight, minimum bend radius, allowable ampacity, short-circuit forces, support spacing, corrosion exposure, grounding and bonding requirements, fire requirements, and applicable local electrical standards before final selection. Published load ratings are not interchangeable and must be checked for the specific tray material, dimensions, span, and support arrangement.

Compare Steel, Aluminum, and FRP Using IEC 61537 Performance Criteria

How to Choose the Right Wire Cable Tray for Your Project?

Choosing a cable tray should begin with IEC 61537 performance criteria, not material preference. In field installations, steel often provides strong load capacity and stable support across longer spans. It also offers reliable electrical continuity when joints are correctly bonded. However, untreated steel can suffer in damp or chemically aggressive areas.

Aluminum reduces handling effort and resists many corrosive environments. Its lower weight can simplify rooftop or retrofit work. Still, thermal movement and lower stiffness may affect support spacing. FRP is nonconductive, lightweight, and useful near moisture, chemicals, or sensitive electrical systems. Its fire behavior, UV resistance, and mechanical performance depend on the specific construction. Check verified test data against IEC 61537 requirements. No material wins everywhere. I have seen lightweight trays selected for easy installation, then overloaded during expansion. That mistake is expensive and avoidable.

Tips: Match the tray to cable weight, span, impact risk, and environment. Confirm load testing, joint continuity, corrosion protection, and temperature limits. For FRP, review fire and UV results carefully. For steel or aluminum, inspect bonding details at every connection. Leave practical space for future cables, but do not assume empty space improves ventilation automatically. Installation quality can weaken an otherwise suitable system.

Verify Span, Deflection, Corrosion Protection, and Bonding Before Installation

Choosing a wire cable tray starts with the project’s actual load, span, and environment. Do not select a tray by width alone. Check the manufacturer’s load table for cable weight, future capacity, and support spacing.

A longer span can increase deflection quickly. Excessive sag may damage cables and make maintenance difficult. Keep deflection within the project specification, even when the tray still appears structurally sound.

Tips: Measure support locations carefully. Confirm the tray’s rated span. Allow space for expansion and cable growth. Inspect every joint before energizing the system.

Corrosion protection also deserves close attention. Indoor dry areas may require a different finish than coastal, wet, or chemically exposed locations.

Look for damaged coatings after cutting or drilling. Repair exposed metal using an approved method. I have seen small scratches become larger corrosion points near standing water. That detail is easy to miss. It should not be.

Material compatibility matters when trays, fasteners, and supports are exposed to different conditions.

Bonding must provide a continuous, low-impedance path across joints and fittings. Do not assume mechanical contact guarantees electrical continuity.

Use bonding conductors where required, especially across painted joints, expansion sections, and dissimilar materials. Test continuity before cables are installed. Record the results with inspection photos and measured values.

A rushed installation may pass visual inspection but fail later. That possibility deserves honest review.
