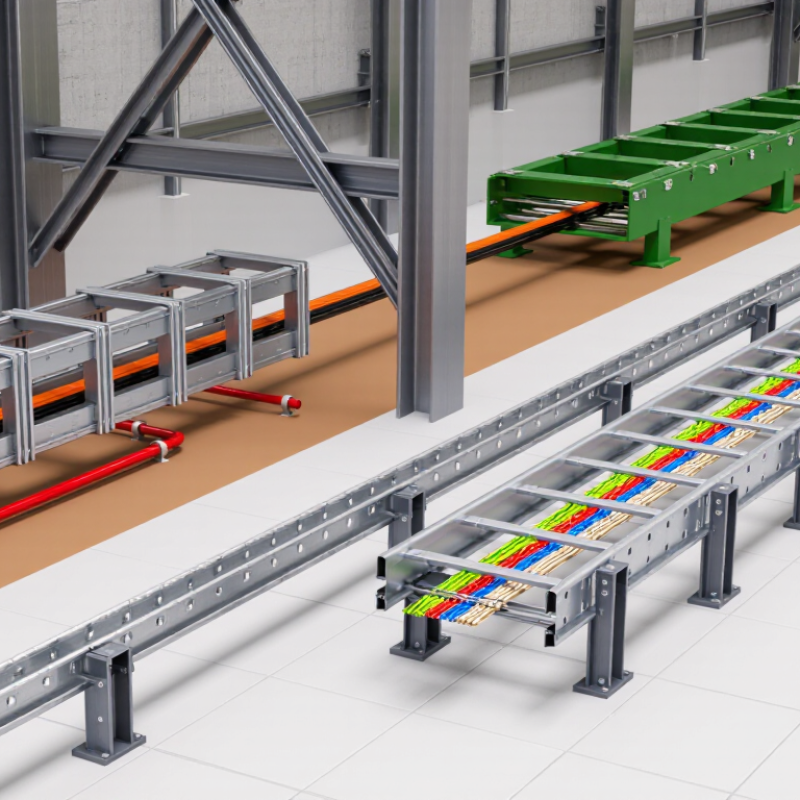

What Are the Top Ladder Cable Tray Types?
No source article or verifiable expert quotation was provided, so I won’t invent a person or attribute a fabricated quote. The practical design principle below is original editorial wording.
Choosing the right ladder cable tray starts with the route, the cable load, and the conditions on site. A tray running above a warm production floor may need different materials and spacing from one installed in a clean, dry equipment room. The details matter: cable weight, span length, fitting locations, and space for future additions all affect the choice.
A useful rule of thumb is: “Choose the tray for the route and load you have—not the one that merely looks right on a drawing.” That is original guidance, not a sourced quotation. In this guide, we compare common ladder cable tray types, including standard ladder, heavy-duty, aluminum, and corrosion-resistant options. Each offers trade-offs in strength, weight, ventilation, and installation effort. Some choices are obvious. Others depend on small site details that are easy to miss.
The right ladder cable tray can support orderly cable runs and make inspection or maintenance more straightforward. Still, no single type suits every project. Check manufacturer load data, environmental conditions, and project specifications before selecting a system. Even a careful comparison has limits: the route may change once installers see the actual structure.
Define Ladder Tray Anatomy and Common 9-, 12-, and 18-Inch Rung Spacing
A ladder cable tray has two parallel side rails joined by crosswise rungs. Those rungs support cables while leaving open space beneath them. The design allows airflow and makes it easier to inspect cable runs. Splice plates connect tray sections, while covers can be added where protection is needed. Keep the basic anatomy in mind.
Rung spacing is usually measured from the center of one rung to the center of the next. Common options include 9-, 12-, and 18-inch spacing. A 9-inch layout gives cables more frequent support, which can suit heavier runs or cables that need closer support. Twelve-inch spacing offers a practical middle ground. Eighteen-inch spacing leaves wider openings for cable drops and may reduce the number of rungs. But it is not right for every cable.
There is no perfect spacing. Check cable weight, tray loading, support span, and the cable maker’s bend and support guidance before choosing. A quick visual check can help: imagine a cable resting across two rungs, especially near a vertical turn. That detail is easy to miss. Also confirm that splice locations and tray supports will not leave an awkward unsupported section. Conditions vary, so a spacing choice that looks tidy on a drawing may need reconsideration on site.
Classify Material Types: Aluminum, Galvanized Steel, Stainless Steel, and FRP
Ladder cable trays are commonly made from aluminum, galvanized steel, stainless steel, or fiber-reinforced polymer (FRP). Each material changes the tray’s weight, corrosion resistance, and support needs. Aluminum is light and easy to handle overhead. Its surface naturally resists corrosion, but that does not make every alloy suitable for every environment. Check load ratings, support spacing, and fitting compatibility before installation.
Galvanized steel offers sturdy support and a protective zinc coating, often at a practical cost. Scratches or cut edges can expose the underlying steel, so inspect them during installation.
Stainless steel can suit damp, salty, or washdown areas, but grades differ. It is easy to treat “stainless” as a complete answer. That shortcut deserves a second look: confirm the grade against the actual exposure and maintenance conditions.
FRP trays resist many corrosive chemicals and are nonconductive, which can be useful in specific industrial settings. They may need different cutting tools and support details than metal trays. Not always obvious. Compare manufacturer load data, temperature limits, and ultraviolet exposure requirements. Also confirm electrical bonding requirements with the project engineer; material choice alone does not settle every design detail.
Compare Rung Styles and Bottom Designs for Power, Control, and Data Cables
Ladder cable trays differ most at the rungs and the bottom. Straight rungs offer simple support for power cables and suit many standard runs. Corrugated or closely spaced rungs can reduce cable sag, especially for heavier bundles. Wider spacing improves access for ties and inspection. It can also leave small cables less supported. Small details matter. Open bottoms allow airflow and make dust easier to spot, but they provide little protection from falling debris. Ventilated bottoms add support while retaining some airflow. Solid bottoms protect sensitive control and data cables from debris, though heat and moisture deserve attention. There is no perfect tray choice.
The International Energy Agency’s Electricity 2024 report estimated data centres used about 460 TWh globally in 2022, with demand potentially exceeding 1,000 TWh by 2026. That growth makes cable capacity and separation worth planning carefully, not treating as an afterthought. For mixed power, control, and data routes, compare rung spacing with cable diameter, bend radius, and support-span requirements. NEMA VE 1 provides a recognized framework for tray construction and load testing; verify the selected system’s rated load against the actual support spacing. A solid-bottom tray is not automatically safer for every data run. It may trap heat or make later changes awkward. Review the route, environment, and cable manufacturer’s installation guidance before specifying a bottom design.
Use NEMA VE 1 Load Classes to Match Tray Capacity with Cable Weight and Span
Ladder cable trays are available in steel and aluminum, with rung spacing selected for cable size and support needs. The type matters, but capacity matters more. NEMA VE 1 load classes help compare a tray’s rated load at a stated support span.
A rating is not a general promise of strength; it depends on the tested span and loading conditions.
Start with the cable schedule. Add the cable weights per foot, including planned spare cables, then compare that total with the tray’s published load rating at the actual distance between supports. Longer spans can reduce allowable capacity. That detail is easy to miss. Check the exact class and span in the product data rather than choosing by appearance or rung spacing alone. Also account for concentrated loads, fittings, and installation conditions, since these may not match a uniform-load rating. A tray that looks sturdy may still be undersized.
For example, a run carrying heavy power cables across widely spaced supports needs a different capacity check than a short span of lighter control cables. Leave practical room for changes, but avoid treating spare capacity as unlimited. If the cable schedule or support layout is uncertain, have a qualified engineer verify the selection. A small mismatch can lead to sagging.
Check NEC Article 392 Fill Rules and IEC 61537 Performance Requirements
NEC Article 392 does not set one universal fill percentage for every ladder cable tray. The permitted arrangement depends on cable type, conductor size, tray width, and installation conditions. For example, single-conductor cables and multiconductor cables follow different fill provisions. Check the applicable Article 392 tables and rules for the specific layout, rather than estimating capacity from the tray’s empty space.
Leave room for a reason. Cables may need to turn, branch, or be replaced later. A tray packed tightly at a neat drawing stage can become difficult to maintain on site. That sounds simple. It isn’t. Confirm cable dimensions and routing with the project documents, and check the edition of the NEC adopted for the installation.
IEC 61537 addresses cable tray and ladder systems, including mechanical performance and testing. Review declared safe working load and support spacing, since a ladder tray’s capacity changes with span and loading. Also consider corrosion protection and electrical continuity where relevant to the installation. These checks do not replace the NEC fill assessment: one standard addresses system performance, while Article 392 governs installation requirements. Actual loading, environment, and local project rules still matter. A small gap in the calculation deserves a second look.
